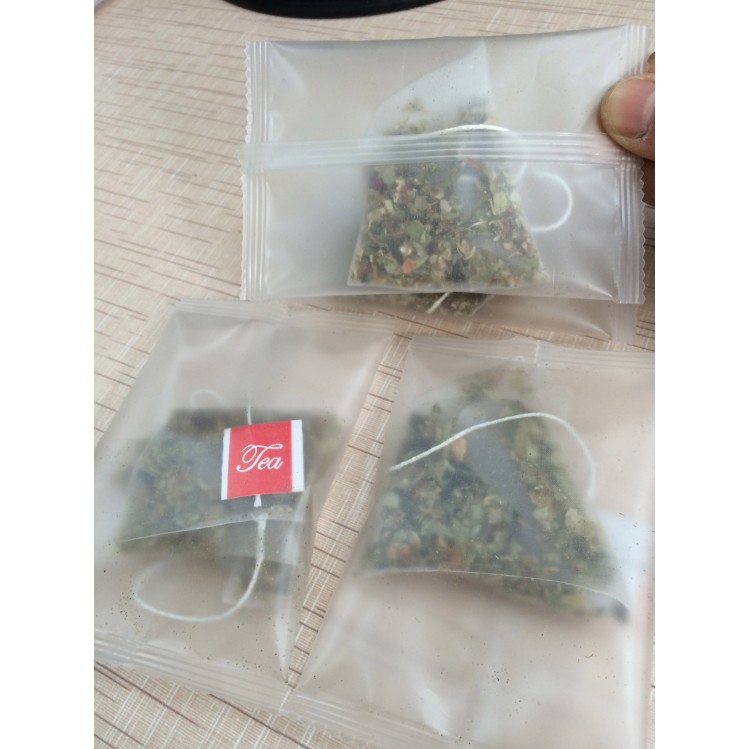

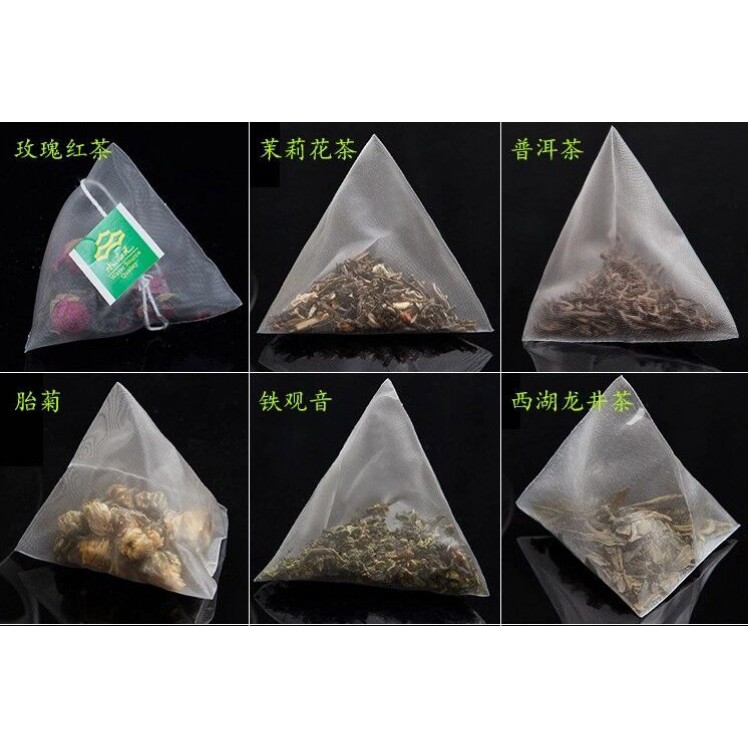

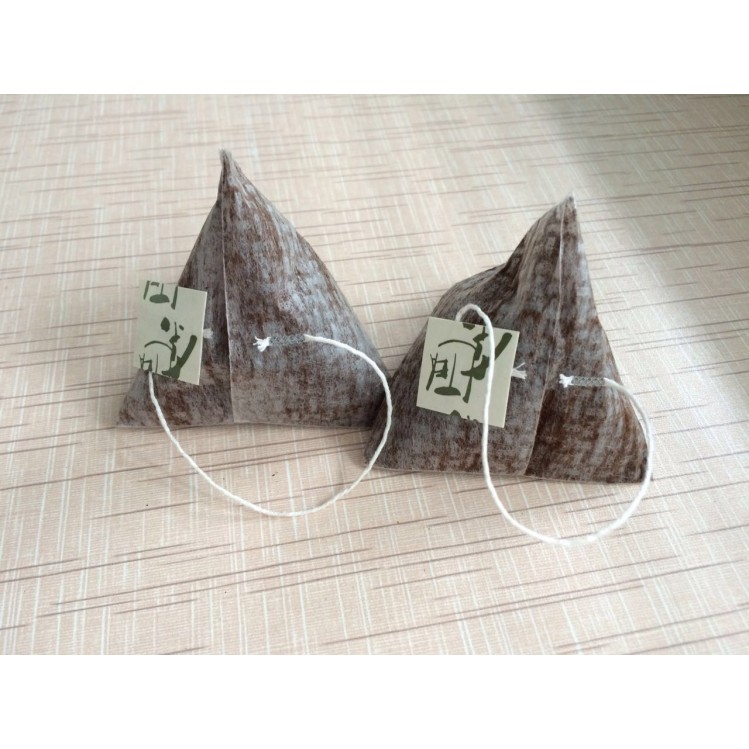

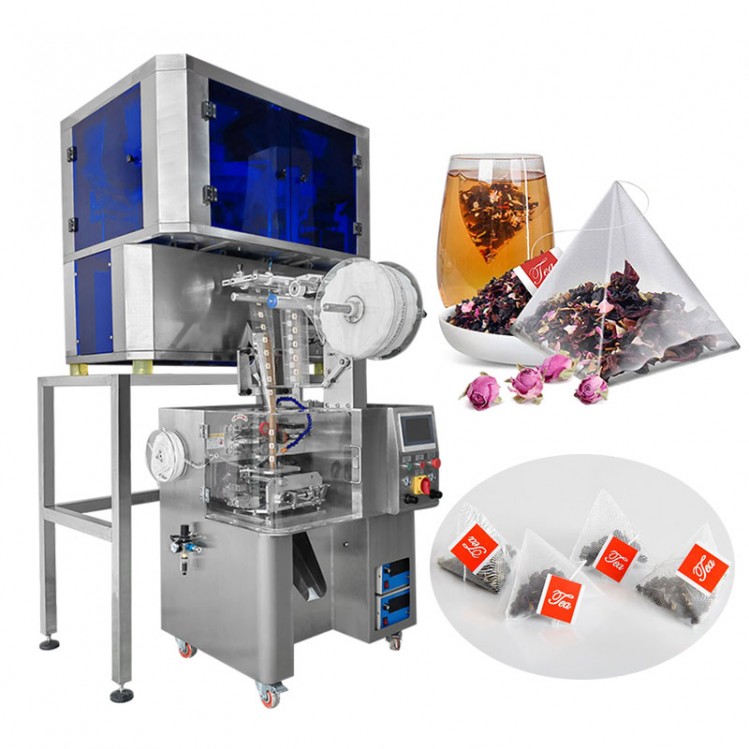

◆This model is designed specially for packing inner triangle tea bag, and rectangular tea bag as well.
◆Filling material can be various tea leaves, flower tea, herb tea, fruit tea, blend tea etc.

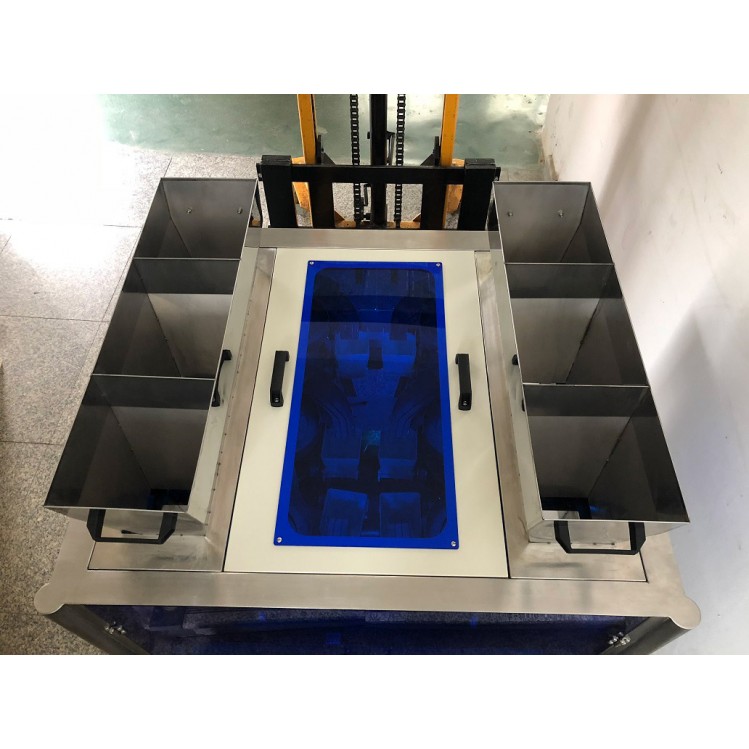

◆Advanced electronic scales automatic weighing feeding system & ultrasonic sealing and cutting technology.
◆Updated electronic scales with two times feeding system with PLC and touch screen for easy operation.
◆Full stainless steel for scales tray and hoppers for food health.
◆Operating flexibility through optional adjustment of technical parameters.
◆Working capacity can be 3,600 bags/hr (Determined by tea material).
◆One machine two functions: can pack pyramidal shape or rectangular bag with easy switch on touch screen.
◆Can handle different packing materials such as Nylon, PLA fiber, PET, Non-woven fabrics or other ultrasonic sealing materials.
Model | KST-160/KST-160-06 |
Working speed | 30-50 bags per min/40-60 bags per min |
Packing film Width | 120mm, 140mm, 160mm(or customized) |
Envelope type | Pyramid/Rectangular tea bag |
Weighing method | 4 / 6 Electronic Scales /Weiger |
Sealing method | Ultrasonic sealing |
Weighing arrange | 1~15g/bag |
Power | 220V Single phase 50/60Hz,1.4kw |
Weight | 400kg/480kg |
Overall dimensions | 1300*1250*2300mm |
