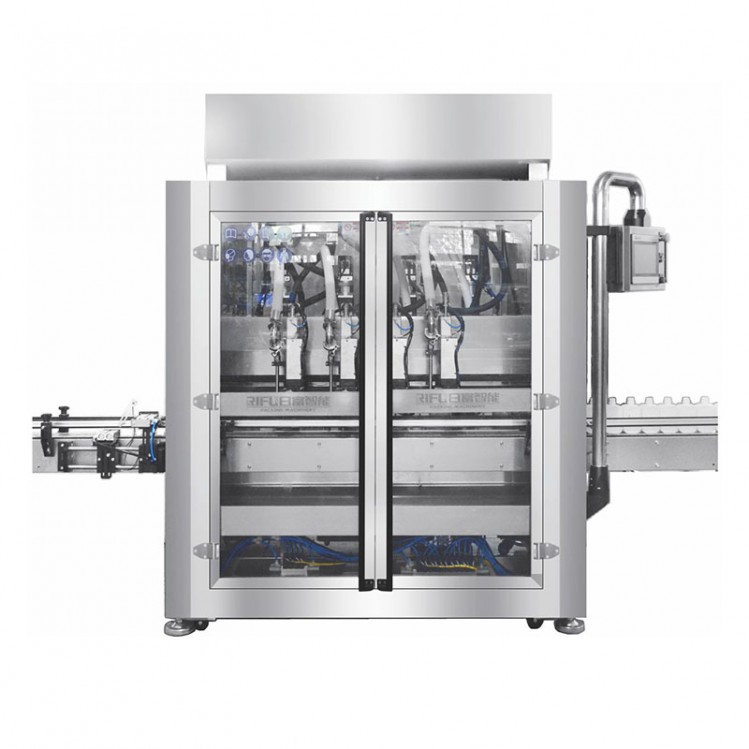

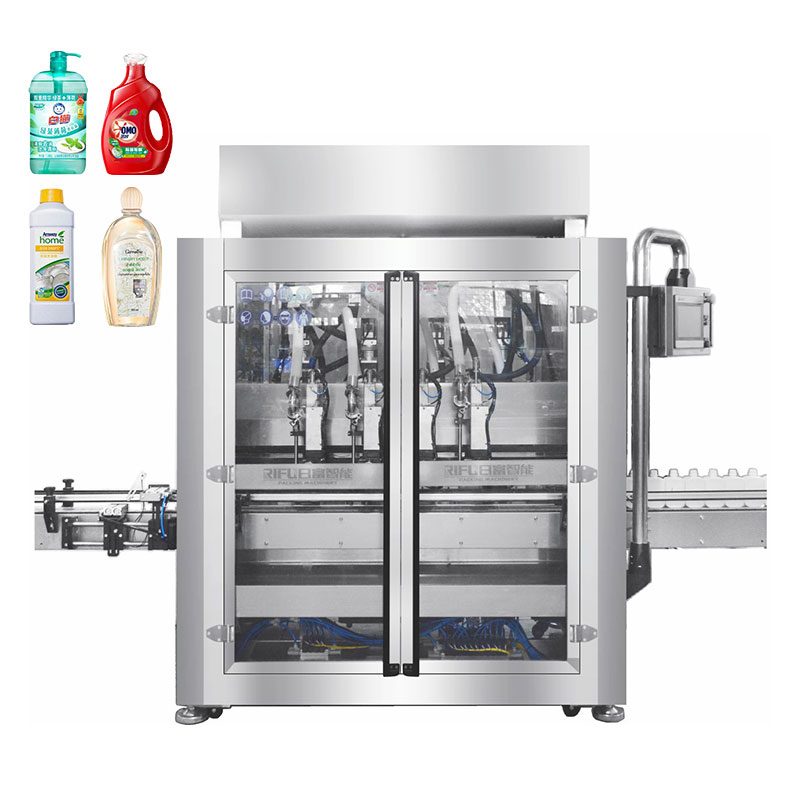

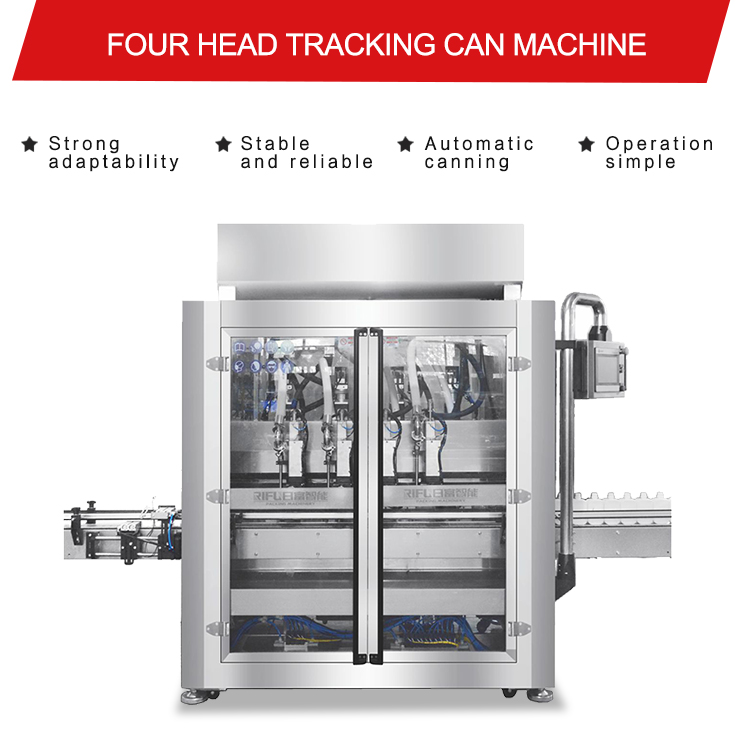

Four-head tracking filling machine

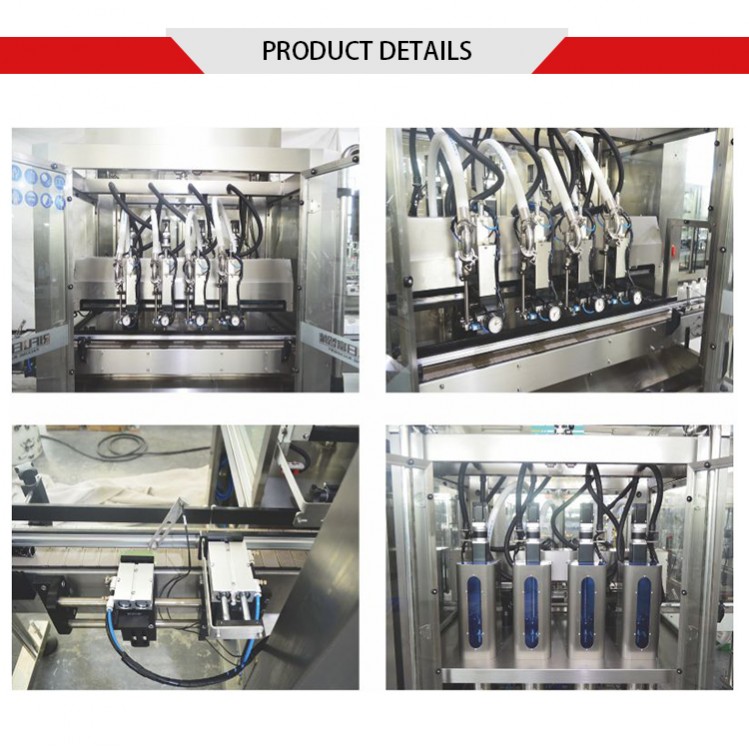

The automatic filling machine adopts the principle of plunger quantitative filling. The bottle entry, positioning filling and bottle exit are all automatically controlled by PLC. It meets the GMP standard and is suitable for liquid paste filling of medicine, food, daily chemical, pesticide and fine chemical industry. At the filling station of the filling machine, since the bottle body is continuously conveyed forward, the tracking filling part is required to be able to realize the four functional actions of tracking down and inserting into the bottle mouth, tracking filling up quickly, and quick return. The movements can be decomposed into horizontal tracking movement and vertical lifting movement, and four functional movements constitute one movement.

Features

1. Touch screen operation interface:

2. The up and down movement type filling can effectively prevent the generation of foam, and it is convenient to disassemble and wash;

3. The filling accuracy can reach ±1%;

4. The filling cylinder has been grinded and the unique filling valve design does not leak;

5. With no bottle, no filling, automatic stop function for accumulated bottles:

6. Design different positioning devices according to the actual situation of the bottle:

7. The equipment is easy to clean and can be disassembled without tools, and can also be cleaned online or sterilized at high temperature;

8. PLC programmable control adopts Mitsubishi of Japan;

9. The inverter adopts French Schneider

10. Pneumatic components adopt Taiwan AirTAC

11. The material in contact with the equipment is made of SUS304# stainless steel;

12. The equipment complies with health and safety standards

Equipment technical parameters
